solid oxide electrolyzers (SOEC)

Sunfire-HyLink SOEC

Sunfire’s SOEC electrolyzers are highly efficient enabling lowest LCOH. Leading the way in SOEC development, Sunfire has implemented the most industrial demonstration projects worldwide.

Sunfire-HyLink SOEC

Lowest LCOH with the Most Efficient Electrolysis Technology

Most powerful standardized SOEC module for 100+ MW applications

World record efficiency of 88 %LHV/AC for Sunfire-HyLink SOEC Gen 3  1)

Outdoor installation saving building & HVAC costs

Constant efficiency and constant, guaranteed nameplate capacity 2)

% LHV/AC

Expected record efficiency 1)

%

H2 purity before cleaning,
after drying 3)

+MW

Accelerated installation of large-scale plants

Standardized & pre-assembled

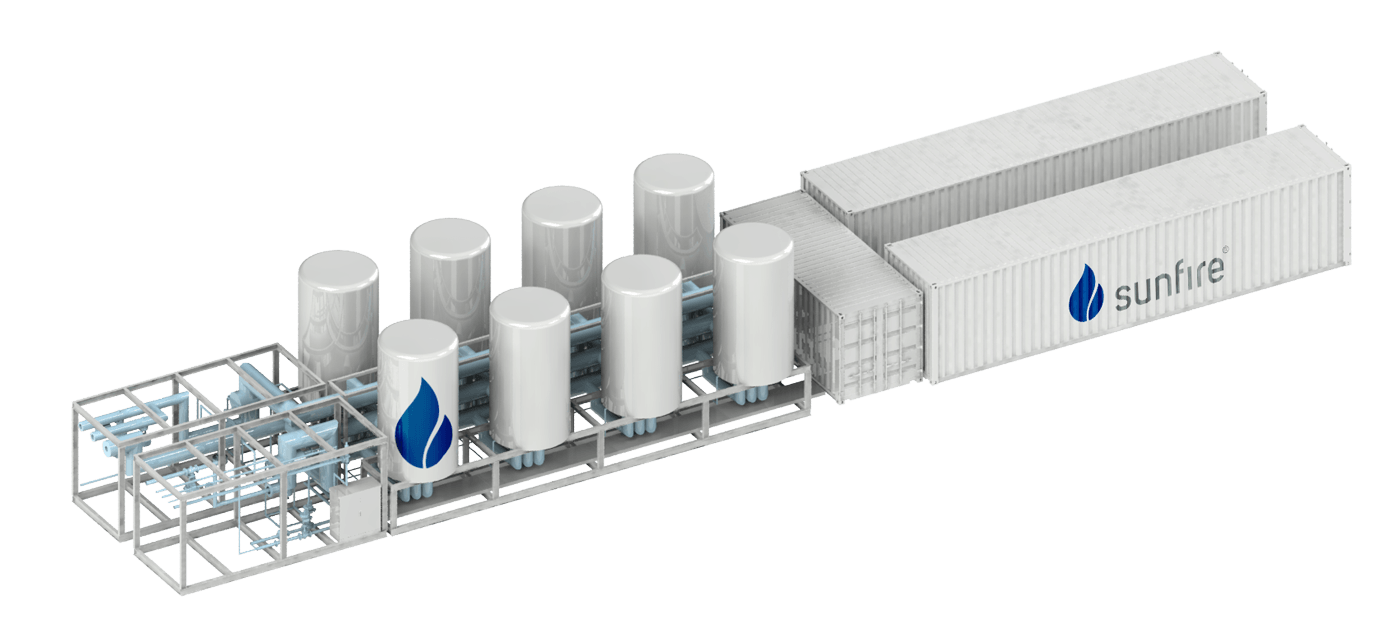

10 MW Module · SOEC

SOEC Electrolysis

25-30 %pt Higher Efficiency than Low-Temperature Electrolysis

SOEC uses low-pressure steam (> 150° C) and operates at high temperatures (~ 800° C)

  • Lower total energy demand at high temperatures
  • Lower overvoltage due to faster reaction kinetics and higher conductivity
Solid oxide electrolyzers (SOEC)

Technical Specifications

All specifications refer to our product: Sunfire-HyLink SOEC GEN 3. Graphics & illustrations may vary and contain partly fictitious values

1)  Expected efficiency of the 3rd generation of Sunfire’s SOEC electrolyzers. Electrical efficiency of 84 % LHV/AC proven in EU-funded GrInHy2.0 project in 2022 with 1st generation of Sunfire’s SOEC electrolyzers.

2) Including all required stack replacements via full LTSA (Long-Term Service Agreement) offering

3) Product gas is water-saturated with < 0.1 mol/mol depending on product gas temperature

4) Total H2 production minus recycle stream required for feed gas. 4) Dynamic range of one module.

5) Dynamic range of one module. So, in any plant the min load would be 5 MW.





Hydrogen Production
Net production rate4)2284 kg/h  ·  3,153 Nm³/h
Flexibility5)50–100 % and 10 %/min
Delivery pressure0.1 bar (g)
Oxygen2,251 kg/h  ·  99.9% purity
Electrical Efficiency
AC-Power10.7 MW
Specific consumption3.40 kWh/Nm³  · 37.8 kWh/kg
Hot standby170 kW

Sunfire-HyLink SOEC

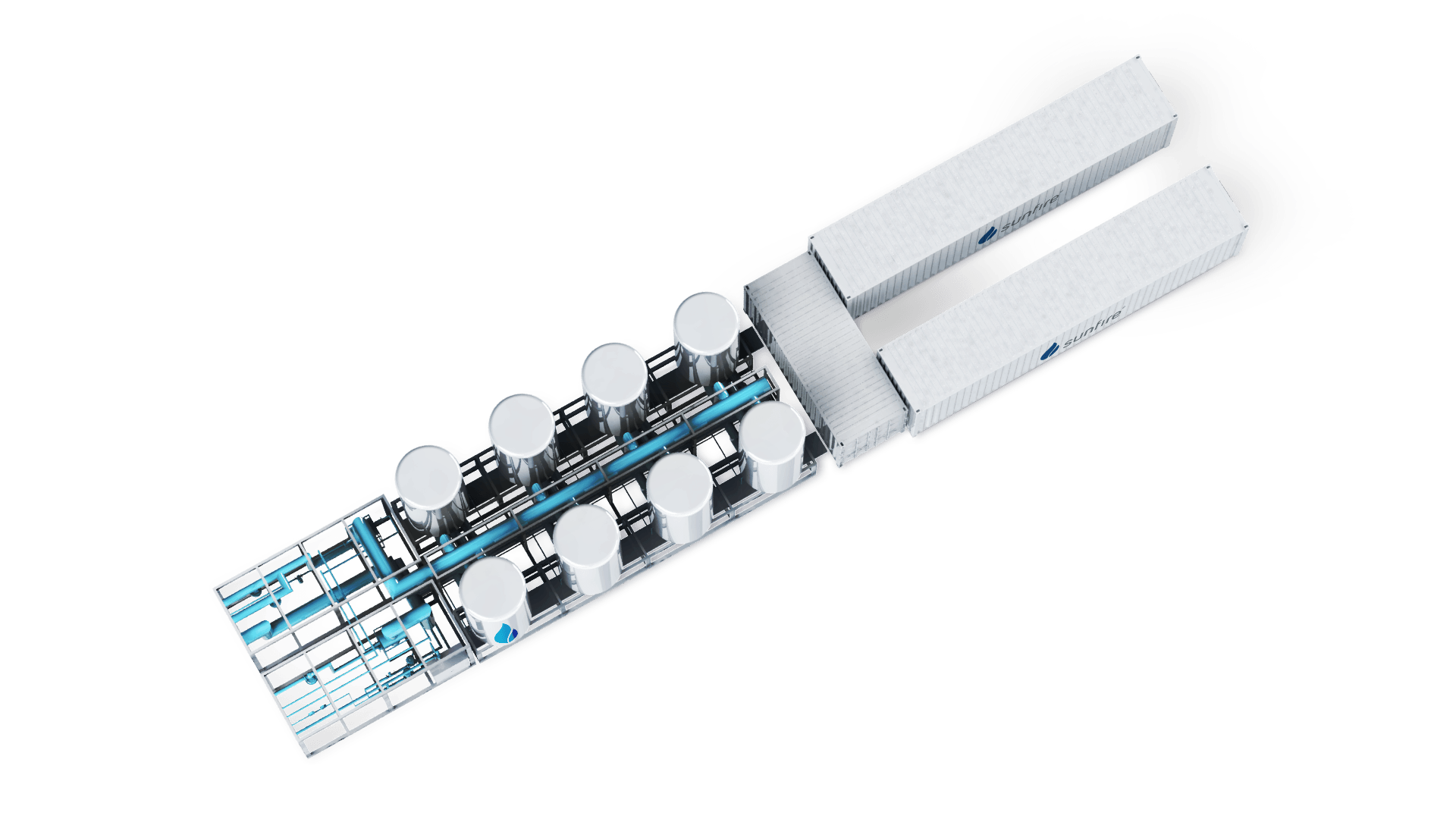

Standardized product for accelerated installation

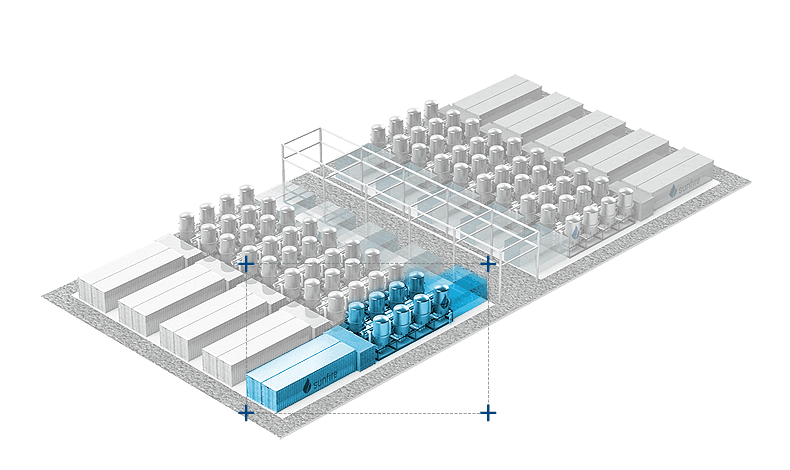

SOEC electrolysis plant · schematic graphic

100+ MW

Sunfire - SOEC
Longest SOEC operating experience
88 %
LHV/AC efficiency 1)
  • »With the commissioning of this first electrolyzer, RWE has officially started to produce hydrogen in Lingen. These 250 kilowatts of electrolysis capacity for the GET H2 TransHyDE research project are an important first step for us, and it will quickly be followed by others«
    Dr. Sopna Sury
    COO Hydrogen – RWE Generation
  • »With the innovative production of synthetic methanol, crude oil and natural gas can be replaced in the chemical industry and the required raw materials can be produced in a climate-neutral way. In this way, we are making a contribution to the decarbonization of basic chemicals.«
    Thomas Behrends
    Managing Director — TotalEnergies Raffinerie Mitteldeutschland
  • »GrInHy3.0 will be the next step forward in our successful GrInHy project series. High-temperature electrolysis uses waste heat from our production processes; it therefore requires comparatively little electricity and its market maturity is within reach.«
    Ralph Schaper
    Head of Energy Management - Salzgitter Flachstahl GmbH
  • RWE Lingen - Sunfire-HyLink SOEC I 250 kW
    View case
  • e-CO2Met project - Sunfire-HyLink SOEC I 0.7 MW
    View case
  • Validation of Sunfire’s SOEC GEN 3 Technology for Industrial Use
    View case
SUNFIRE CUSTOMER REFERENCES​

Project Showcases
